Bamo Metallic CDA Flow Controllers, on a vertical or horizontal pipe, of a liquid free of particles. An orifice plate with a magnet is pushed by the fluid to monitor, in a cylindrical tube. A compensating spring insures the equilibrium of plate and allows the mounting in any position.
 |

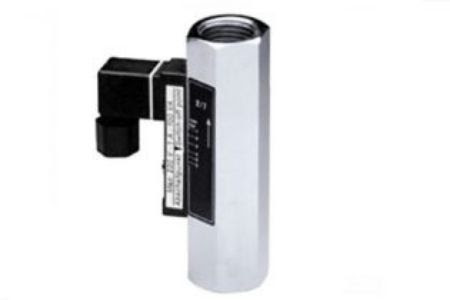

| Bamo Metallic CDA Flow Controllers |
A Reed contact is adjustable all along the scale, its status changes with the passage of the magnet. With these equipment, the CDA operates independently of the pressure, even in low flow rates.
CDA flow controllers must be installed away from any magnetic field. All ferromagnetic parts, must be at a minimum distance of 10 cm.
Bamo Metallic CDA Flow Controllers Features:
• Operates in all positions
• With 1 adjustable contact
• Versions: Stainless steel or brass
• Pressure: Up to 350 bar
• Ranges: between 0.005 ...150 l/min
Application:
Cooling circuit monitoring, high pressure washing piping, dry-run pump prevention, etc.
Bamo Metallic CDA Flow Controllers Specification:
| Temperature | -20 ... +100 °C (On request: up to 160 °C) |
| Operating ranges | l/min of water at 20 °C |
| Accuracy | ±10 % Full range |
| Pressure drop | Fitting 1": 0.02 ... 0.4 bar |
| Fitting ½": 0.02 ... 0.3 bar | |
| Fitting ¼": 0.02 ... 0.2 bar | |
| Contact | Standard: N.O. whithout flow |
| Hysteresis | ≈1.5 mm |
| Connector | IP 65; DIN 43650; C shape |
Brass model | 250 bar (Fittings 1") |
| Pressure limits | |
| 300 bar (Fittings ½" and ¼") | |
| Main parts | Body: Nickel-plated brass; other wet parts: brass |
| Spring | AISI 316 Ti (1.4571) |
| Seals | NBR |
| Magnet | Hard ferrite |
Stainless steel model | 300 bar (Fittings 1'') |
| Pressure limits | |
| 350 bar (Fittings ½" and ¼") | |
| Main parts | Body, other wet parts: AISI 316 Ti (1.4571) |
| Spring | AISI 316 Ti (1.4571) |
| Seals | FPM |
| Magnet | Hard ferrite |
Download Data Sheet: Flow Controllers, Metallic CDA
