Energoflow LF-131H Liquid Flow Meter for applications where the medium pressure is very high, eg. measuring the flow of strata l water, we have developed the model LF-131H. The device can be used for bidirectional measurement of the flow of mediums at pressure as high as 40 Mpa.
 |
| Energoflow LF-131H Liquid Flow Meter |

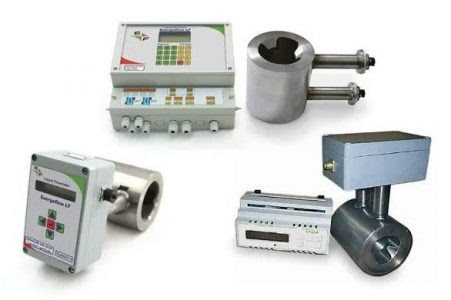

These Liquid Flow Meter LF-131H are available in two versions - with an integrally mounted or with a standard remotely installed Electronics unit.
Electronics unit having a built-in battery which provides full autonomous functionality for more than four years, The LF-131H Liquid Flow Meter is widely used in the downstream applications in the Oil & Gas industry, eg. at extraction wells since they are rugged and can handle aggressive liquids at such high pressure. They are also used for applications like cementing of wells and measurement of the flow of chemicals injected into wells at high pressure.
Energoflow LF-131H Technical Characteristics
| Parameter | Nominal the inner diameter of the pipeline, DN, mm | ||
|---|---|---|---|
| 50 | 80 | 100 | |
| Liquid temperature,ºC | 0...150 ºC | ||
| Gauge pressure, MPa | 16MPa, 25MPa | ||
| Maximum flow Q max, m 3 / h | 71 | 180 | 285 |
| Transitional flow Qt, m 3 / h | 4.2 | 6.8 | 8.5 |
| Minimum flow Qmin, m 3 / h | 0.7 | 1.8 | 2.8 |
| Threshold flow Q, m 3 / h | 0.15 | 0.35 | 0.35 |
| Relative error of measurement of flow and volume,% | |||
| Qt … Qmax | ± 1 % | ||
| Qmin … Qt | ± 4 % | ||
| Qthreshold … Qmin | the calculation is conducted with non-standardized accuracy | ||
| For the flows less Qthreshold | volume is not accumulated (Flow, is taken as equal to zero) | ||
Download Catalog: Ultrasonic Liquid Flowmeter
